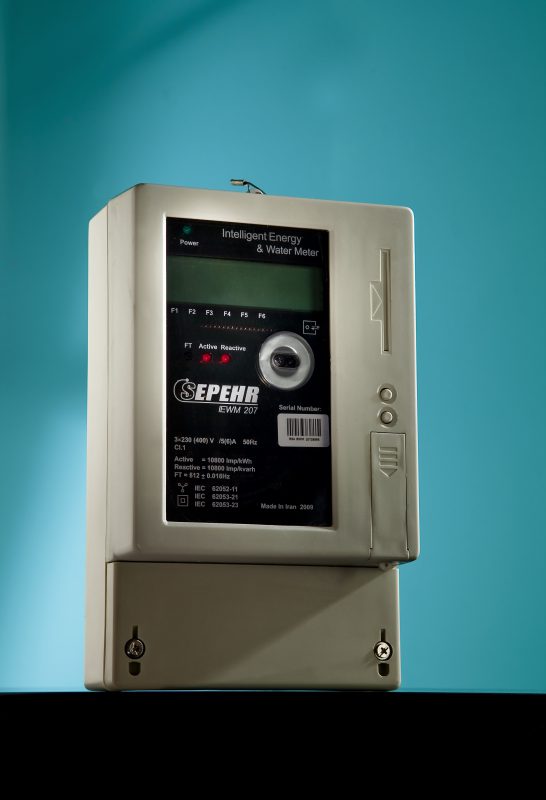

کنتور هوشمند آب و برق سه فاز
- منطبق با استانداردهای اندازه گیری IEC
- انتقال داده از طریق پورت‌نوری و کارت هوشمند
- امکان قطع برق در زمان‌های از پیش تعیین شده
- امکان قطع برق در صورت تجاوز از مقادیر مجاز
کنتور آب
- اندازه‌گیری آب مصرفی کل
- اندازه‌گیری دبی لحظه‌ای
- ذخيره آب مصرفي برای دوره‌های گذشته
- امکان مدیریت برداشت بر اساس اعتبار تخصیص یافته در بازه‌های زمانی
- محاسبه و نمايش دبي ماكزيمم ماهيانه
- محاسبه و نمايش ساعت كاركرد الكترو‌‌پمپ
- دقت بیش از 95% در اندازه‌‌گيري حجمي آب
- قابليت كاليبراسيون نرم افزاري و دستي در محل
- قابليت عملكرد با انواع مختلف آب‌ها از نظر ميزان سختي
- قابليت انطباق با الكتروپمپ‌هاي موجود در كشور
- واكنش هوشمند به تغييرات سطح آب چاه
مشخصات
|
IEWM207 |
||
|
Water Meter’s Technical Data |
||
|
Measuring Parameters |
Total Water Consumption |
|
|
Instantaneous Flow |
||
|
Electro-Pumps Operating Time |
||
|
Data Storage & Load Profile |
Water Consumption |
Up to 12 Periods |
|
Maximum Flow |
||
|
Accuracy |
Water Metering |
> %95 |
|
Calibration Type |
On-site |
Manual/Software |
|
Communications |
Optical Port: IEC 62056-21 |
|
|
Smart Card |
||
|
Credit Features |
Data exchange with smart card/COM ports |
|
|
Adjustable operation in credit mode via smartcard |
||
|
Definable total annual permitted water |
||
|
Definable permitted water withdrawal for current year |
||
|
Definable credit’s start date |
||
|
Definable credit’s expiry date |
||
|
Disconnect Features |
Programmable Relay Power disconnection in case of exceeding water withdrawal Power disconnection in case of credit date expiry |
|
|
Adaptations |
Identifying the Proper Operation of Electro-Pumps Intelligently |
|
|
Applicable for Different Levels of Water Hardness |
||
|
Compatibility with Different Electro-Pumps |
||
|
Climatic |
||
|
Operating Temperature Range |
-25ºC to +60ºC |
|
|
Storage Temperature |
-40ºC to +75ºC |
|
|
Relative Humidity |
95% Non-Condensed |
|
|
EMC-Compatibility |
||
|
Insulation Test |
>4 kV , 1min,50HZ |
|
|
Impulse Withstand Test |
>6 kV 1.2/50μsec |
|
|
Surge Immunity Test |
IEC61000-4-5 (±4 kV 1.2/50μsec) |
|
|
EFT & ESD |
IEC61000-4-4 (±6 kV on Line, & Null ) & IEC61000-4-2 (±15kV Air) | |
|
IEWM207 |
|
|
Energy Meter’s Technical Data |
|
|
Meter Type |
Static, Three Phase, Active & Reactive Energy |
|
According to |
IEC62052-11, IEC62052-21, IEC62053-22, IEC62053-23, IEC62056-61 |
|
Connection Type |
Three Phase 4 Wire (Direct) / Three Phase 4 Wire (CT) |
|
Nominal Voltage/ Frequency |
3 x 230/400V / 50Hz |
|
Operating Voltage Range |
3*230/400V ± 20% |
| Accuracy Class |
Active Class 1 (Direct) Active Class 0.5s (CT) |
|
Reactive Class 2 |
|
| Voltage/Current RMS Accuracy |
2% within Meter Operating Range |
|
Basic Current |
10A (Direct) |
|
5A (CT) |
|
| Maximum Current |
100A Permanent (Direct) |
|
6A Ext. 10A (CT) |
|
|
Starting Current |
According to IEC Standard (CT) |
| Meter Constant |
10800 imp/kWh / 10800 imp/kvarh |
|
Insulation Class |
Double Insulation |
|
Communications |
Optical Port: IEC 62056-21 |
|
Smart Card |
|
|
Battery |
Internal long life Lithium Battery to Support RTC |
|
Display |
Large Digits |
|
Backlight |
|
|
None-Volatile Memory |
Retention Time more than 10 Years |
| Output Command |
NO/NC Relay |
|
Climatic & Mechanical |
|
|
Operating Temperature Range |
-25ºC to +65ºC |
|
Storage Temperature |
-40ºC to +75ºC |
|
Relative Humidity |
95% Non-Condensed |
|
Weight |
1.8kg |
|
Dimensions |
284 mm * 175 mm * 92 mm |
|
Life Time |
10Years |
|
EMC-Compatibility |
|
|
Insulation Test |
>4 kV , 1min,50HZ |
|
Impulse Withstand Test |
>6 kV 1.2/50μsec |
|
Surge Immunity Test |
IEC61000-4-5 (±4 kV 1.2/50μsec) |
|
EFT & ESD |
IEC61000-4-4 (±6 kV on Line, & Null ) & IEC61000-4-2 (±15kV Air) |
